Product degradation from oxygen and moisture drives costly recalls. It damages brand equity. It heavily shrinks your profit margins. You lose more than just shelf life when atmospheric protection fails. Sensitive items require extremely robust primary packaging. Food, pharmaceuticals, and pet care products rely on it daily. It forms the critical line of defense against continuous environmental exposure. Evaluating the right packaging solution demands a deep dive into modern material science. You must clearly understand how multi-layer structures function. Then, you match specific transmission rates directly to your product’s unique vulnerability profile. We will explore these core mechanics in detail below. You will discover the exact metrics packaging engineers use to predict shelf stability. We break down standard material layers and their operational realities. Proper execution prevents product spoilage and preserves organoleptic properties. Let us examine the exact science behind these protective atmospheric barriers.
Protection relies on multi-layer laminations, combining distinct structural, barrier, and sealant layers.
Performance is objectively measured by two critical metrics: Oxygen Transmission Rate (OTR) and Water Vapor Transmission Rate (WVTR).
Material selection (e.g., EVOH, aluminum foil, metallized films) dictates barrier performance, but must be balanced against cost, machinability, and sustainability goals.
A high-performance barrier material is only as effective as its physical format and seal integrity on the production line.
Poor atmospheric protection directly causes severe product failures. We must define the exact mechanisms behind these expensive breakdowns. Atmospheric ingress destroys product integrity through two primary channels: oxygen exposure and moisture penetration. Recognizing these failure modes helps you design better defense strategies.
Oxygen acts as a highly aggressive agent against organic materials. Lipid oxidation destroys nuts, oils, and high-fat foods. This chemical reaction causes severe rancidity. Aerobic microbial growth also accelerates when oxygen enters the package. Fresh foods spoil rapidly under these conditions. Additionally, oxygen drives unwanted color degradation. It strips away essential vitamins, reducing the nutritional value of your goods.
Unwanted water vapor wreaks havoc on dry and hygroscopic goods. Dry powders clump together and solidify. Snacks lose their signature crispness instantly. Mold proliferation accelerates in damp, sealed environments. In pharmaceutical applications, moisture degrades active pharmaceutical ingredients (APIs). This renders life-saving medications ineffective.
Effective packaging must do more than just hold a product. It must actively extend shelf life to meet demanding distribution requirements. It must maintain critical organoleptic properties. Your consumers expect optimal taste, texture, and aroma upon opening. Furthermore, your packaging must ensure strict regulatory compliance. You must achieve all these goals without over-engineering the material. Over-specification drains your budget unnecessarily.
What to watch out for: Do not guess your required shelf life. Brands often overpay for maximum protection when regional distribution only requires moderate barrier levels. Always align your success criteria with actual supply chain transit times.
When engineering flexible films packaging, we rarely rely on a single material. Manufacturers combine different polymers to create robust defense systems. They utilize specialized adhesives to bond incompatible films together.
Modern flexible packaging relies on a standard three-to-four tier anatomy. Each layer performs a highly specific function.
Print/Exterior Layer: This layer provides vital structural integrity. It offers the high heat resistance needed during the sealing process. Polyethylene Terephthalate (PET) frequently serves this role. It also provides a smooth surface for high-quality graphics.
Barrier Layer: This forms the core defense mechanism. It actively intercepts incoming gas and water molecules. Without it, the exterior and sealant layers offer minimal atmospheric protection.
Sealant Layer: This ensures absolute hermetic closures. Linear Low-Density Polyethylene (LLDPE) frequently acts as the inner sealant. It melts quickly to fuse the package shut without damaging the outer layers.
Packaging engineers rely on precise laboratory metrics to evaluate performance. You must understand OTR and WVTR to specify the correct materials.
OTR (Oxygen Transmission Rate): Laboratories measure this metric in cubic centimeters per square meter over 24 hours (cc/m²/24hrs). It quantifies exactly how much oxygen penetrates the film. Lower numbers indicate significantly higher protection. Vacuum-packed coffee requires an extremely low OTR to prevent staling.
WVTR (Water Vapor Transmission Rate): This measurement framework tracks grams per square meter over 24 hours (g/m²/24hrs). Hygroscopic products critically depend on low WVTR values. It tells you exactly how much ambient humidity will breach the package over a single day.
Best Practice: Always request OTR and WVTR testing data at specific temperature and humidity levels. A film performing well at 23°C may fail completely at elevated tropical temperatures.
Choosing the right barrier material dictates your ultimate success. We must break down the industry-standard solutions. You need to understand their operational realities before making a procurement decision.
Aluminum Foil: This acts as the absolute barrier. It provides zero OTR and zero WVTR. However, it severely limits product visibility. It entirely lacks microwave compatibility. Foil also carries a notably higher carbon footprint compared to pure polymers.
Metallized Films (MetPET): Manufacturers vacuum-deposit a microscopic layer of aluminum onto a polymer base. This offers excellent barrier properties. It delivers a lower cost and lighter weight than pure foil. Unfortunately, it remains highly susceptible to flex cracking during transit.
EVOH (Ethylene Vinyl Alcohol): This material provides a superior oxygen barrier. It remains fully transparent, allowing consumers to see the product. However, EVOH is highly sensitive to moisture. It loses its oxygen-blocking capability when wet. Manufacturers must sandwich it securely between moisture-resistant layers like PE or PP.
AlOx / SiOx Coatings: These represent advanced transparent, non-metal barriers. Aluminum Oxide and Silicon Oxide coatings offer incredibly high protection. They also provide improved recyclability profiles compared to mixed-metal laminates.
Barrier Material Decision Matrix
Barrier Material | Oxygen Protection (OTR) | Moisture Protection (WVTR) | Transparency | Key Limitation |
|---|---|---|---|---|
Aluminum Foil | Excellent (Zero) | Excellent (Zero) | Opaque | Not microwaveable, flex cracking |
Metallized PET | High | High | Opaque | Prone to pinholing during transit |
EVOH | Excellent | Poor | Clear | Must be shielded from humidity |
AlOx / SiOx | High | High | Clear | Can be brittle under heavy stress |
Decision Matrix Logic: Match your material directly to the required shelf life and ambient storage environment. Frozen foods often require different barrier profiles than ambient-temperature snacks. Do not pay for aluminum foil if a simple EVOH structure meets your six-month shelf-life target.
Your physical format strategy plays a massive role in atmospheric protection. The physical construction of the packaging impacts both the barrier's integrity and your manufacturing efficiency.
High-volume operations typically utilize printed roll film. This format feeds directly into VFFS (Vertical Form Fill Seal) and HFFS (Horizontal Form Fill Seal) machines. Roll stock proves best for continuous production environments. You must calibrate seal reliability tightly. A high-speed line can produce thousands of defective units rapidly if the heat jaws drift out of alignment. Tie layers and sealants must activate instantly to prevent micro-leaks during rapid filling.
Specific applications require a flat, compact footprint. You should specify three side seal pouches when minimizing dead space is critical. This format is ideal for single-serve items, sterilized medical devices, or meat jerky. By eliminating excess air space inside the package, you drastically limit residual oxygen. This extends shelf life naturally. These pouches pack tightly into retail display cartons and withstand severe transportation vibrations remarkably well.

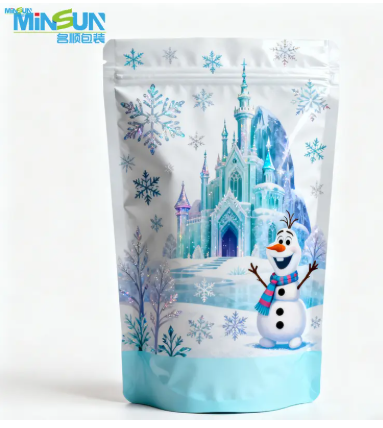

Consumer brands often seek aggressive shelf presence. Deploying a high barrier food pouch meets this need perfectly. Stand-up pouches feature expanding gussets and resealable zippers. They dominate premium retail aisles. However, these complex formats present unique engineering challenges. Maintaining strict barrier integrity around closures and zippers is difficult. You face a high necessity for strong hermetic seals exactly at the gusset transition points. The quadruple-layer intersections where the gusset folds meet the side seams are notorious for pinhole leaks.
Theoretical barrier performance often differs from operational reality. You must navigate severe implementation risks to guarantee product safety.
We must acknowledge a hard truth in packaging engineering. A zero-OTR foil is entirely useless if the heat seal fails. Micro-leaks routinely occur at the seams. Product residue trapped in the seal area compromises the closure. If oxygen bypasses the laminate through a weak seal, the expensive barrier layer provides no value.
Transportation vibrations destroy inferior packages. Constant handling creates microscopic fractures in rigid barrier layers. Aluminum foil and metallized films suffer heavily from flex cracking. These micro-fractures drastically alter your real-world OTR and WVTR compared to optimal lab specs. You must conduct aggressive drop testing and vibration simulations to ensure the barrier survives the actual supply chain.
You cannot ignore compliance. Food and pharmaceutical applications require strict FDA-approved food contact materials. You must perform extraction testing. This ensures no harmful chemicals migrate from the laminate layers into the consumable product. Adhesives and printing inks must remain fully isolated from the food zone.
The industry faces immense friction regarding environmental impact. Traditional multi-layer high-barrier films mix dissimilar plastics and metals. This makes them historically non-recyclable. Emerging mono-material barrier structures attempt to solve this. Engineers now stretch single-polymer PE families to achieve moderate barrier levels. You must carefully balance your corporate sustainability goals against the hard realities of product spoilage.
Your barrier packaging will only perform as well as the partner manufacturing it. You must audit a packaging supplier's technical capabilities rigorously. Sourcing logic dictates that you look beyond basic pricing. Focus on their quality control labs and their extrusion consistency.
Follow these structured steps when evaluating your next packaging run:
Request Technical Data Sheets (TDS): Demand specific documentation detailing exact OTR and WVTR values. Ensure these metrics reflect specific humidity and temperature conditions relevant to your distribution channels.
Require Shelf-Life Modeling: Ask the supplier to provide shelf-life modeling. Conduct compatibility testing directly against your specific product formula. Aggressive spices or acidic oils can delaminate poorly constructed films.
Conduct Comprehensive Line Trials: You must verify machinability on your own factory floor. Test the film's Coefficient of Friction (slip). Ensure the seal initiation temperature aligns seamlessly with your existing equipment parameters.
Common Mistake: Skipping the line trial to save time. A film that feels perfect in your hand might stretch, snap, or melt unevenly when pulled through a high-speed VFFS machine at two hundred pouches per minute.
Protecting vulnerable products from oxygen and moisture remains an exact science. You must carefully balance OTR, WVTR, package format, and manufacturing line speed. A failure in any one of these pillars leads to rapid product degradation. We strongly encourage packaging engineers and brand managers to validate materials thoroughly. You must test laminates in real-world transit conditions rather than relying solely on optimal, static laboratory data.
Secure your product’s integrity before it leaves your facility. Request a thorough material consultation today. Secure a barrier testing sample tailored to your environment, or ask for a custom quote designed around your specific product application.
A: You calculate this by evaluating your target shelf life against product sensitivity thresholds. Engineers use accelerated shelf-life testing in environmental chambers. They map how quickly your specific formula degrades at various temperature and humidity levels. You then select a barrier film that restricts gas and moisture transmission below that critical failure threshold over the desired timeframe.
A: Historically, no. Traditional mixed-material laminates (like PET/Foil/PE) cannot be easily separated for recycling. However, the industry is rapidly shifting. Newer EVOH-based mono-PE structures provide excellent barriers while remaining compatible with store-drop-off PE recycling streams. Always verify local recycling infrastructure capabilities.
A: The usual suspects include weak heat seals, product contamination in the seal zone, and flex cracking. Aggressive product ingredients, like essential oils or highly acidic sauces, can chemically degrade the inner sealant layer. Additionally, severe transportation vibrations can fracture brittle barrier layers like foil or MetPET, introducing microscopic pinholes.
