Stand-up pouches have become a go-to flexible packaging solution for brands worldwide, offering exceptional shelf presence, portability, and product protection. But for businesses investing in custom packaging, one critical challenge often arises: how to select the right-sized pouch for your specific product? Choosing a pouch that’s too small leads to overfilled, misshapen packaging that damages brand perception and hurts sales. Opting for one that’s too large results in underfilled bags that look unprofessional, waste valuable packaging materials, and increase production and shipping costs.
Accurate volume calculation is the key to solving this dilemma. It ensures your product fits perfectly—neither cramped nor swimming in excess space—while optimizing material usage and maintaining visual appeal on store shelves. In this guide, we’ll break down volume calculation methods for different pouch types (highlighting our diverse stand-up pouch offerings), share our precision-driven measurement approaches, and show you how Min Sun’s custom packaging solutions can tailor the ideal pouch for your product.
The volume calculation method depends on the pouch’s design, as each type offers unique structural features to suit different products. At Min Sun, we offer a comprehensive range of stand-up pouches and flexible packaging options, each engineered for specific use cases:
The classic stand-up pouch features a single bottom gusset that expands to create depth, allowing it to stand upright. It’s ideal for snacks, coffee, dried fruits, and powdered products.
Key Dimensions:
1) Width (W): Distance across the front face of the pouch
2) Usable Height (H): From the base of the expanded gusset up to the seal line or zipper (excludes unused top space)
3) Gusset Depth (D): Width of the flat bottom panel when fully opened
Volume Formula:
Volume (V) = Width × Usable Height × Gusset Depth
Example:
A snack brand needs a pouch for 250g of granola. With a pouch width of 14cm, usable height of 22cm, and gusset depth of 5cm:V = 14cm × 22cm × 5cm = 1,540 cm³ (1.54L) – perfectly fitting the product without excess space.

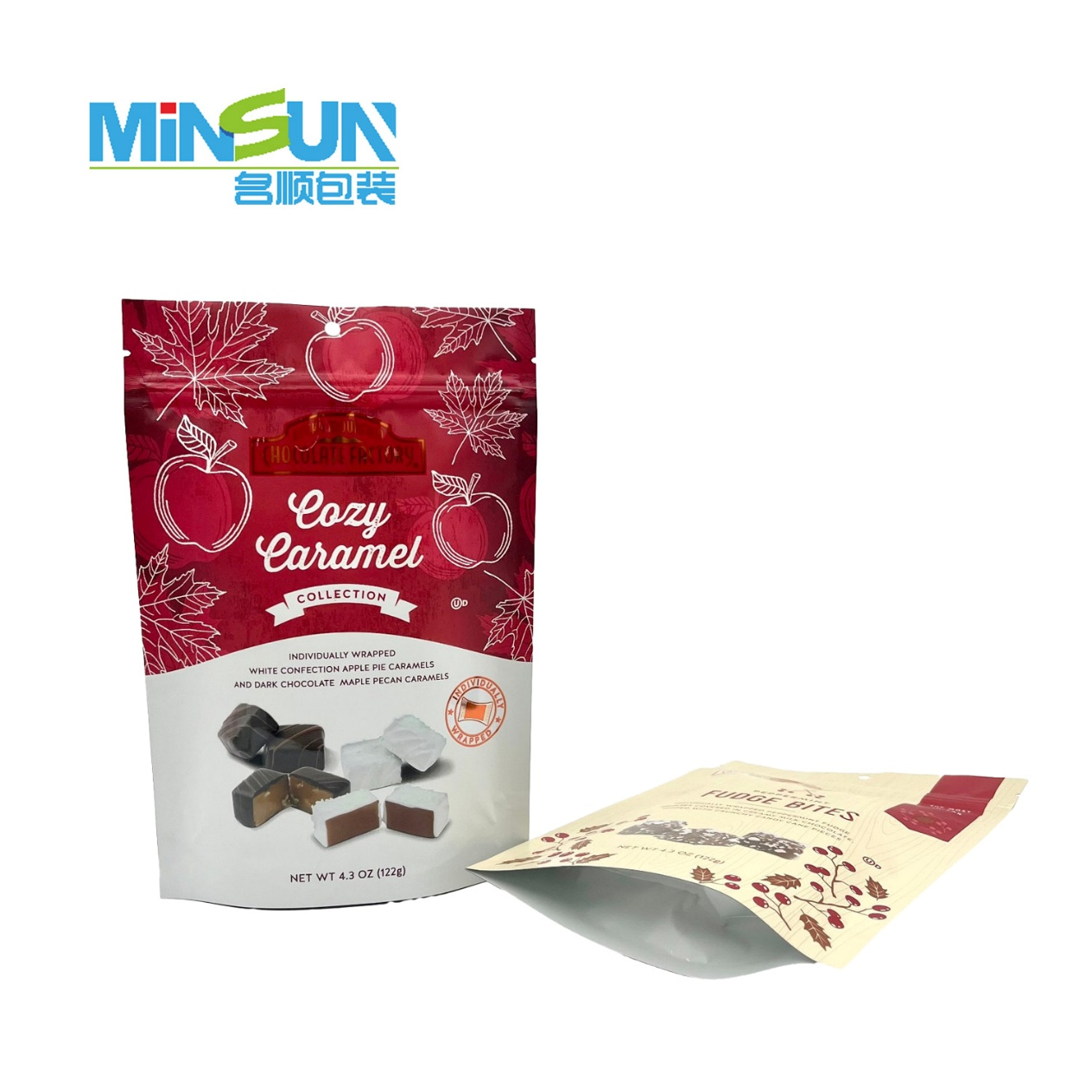

Basic Stand-Up Pouch (SUP) with Bottom Gusset
Our flat bottom pouches feature gussets on both sides and a rigid rectangular base, offering maximum volume and stability—ideal for rice, pet food, large snack bags, and high-volume products.
Key Dimensions:
1) Face Width : Across the front panel
2) Usable Height : Up to the seal line/zipper
3) Bottom Depth: Width of the flat bottom panel
4) Side Gusset Depth : Width of one side gusset when fully expanded
Volume Formula:
For precise calculations (accounting for box-like structure):Volume (V) = (Face Width × Side Gusset Depth × Usable Height) + (Bottom Depth × Side Gusset Depth × Usable Height)
Example:
A pet food brand needs a pouch for 1kg of dry kibble. With face width 18cm, usable height 28cm, bottom depth 8cm, and side gusset depth 6cm:V = (18×6×28) + (8×6×28) = 3,024 + 1,344 = 4,368 cm³ (4.37L) – ensuring the product fits snugly with room for proper sealing.

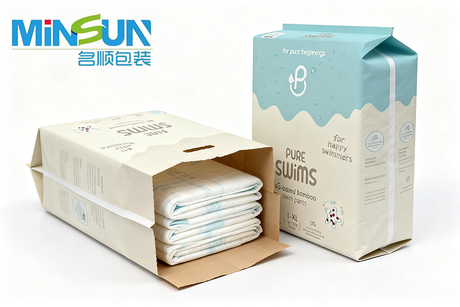

Flat Bottom Pouch (Quad-Seal/Side Gusseted)
Designed for liquids, sauces, or powdered products that require controlled dispensing, our spouted pouches include a built-in spout/closure while retaining the stand-up feature.
Key Dimensions: Same as basic stand-up pouch (Width × Usable Height × Gusset Depth) minus the internal space occupied by the spout.
Note: Subtract 5-10% of the total volume to account for the spout’s internal footprint, ensuring accurate fill capacity.

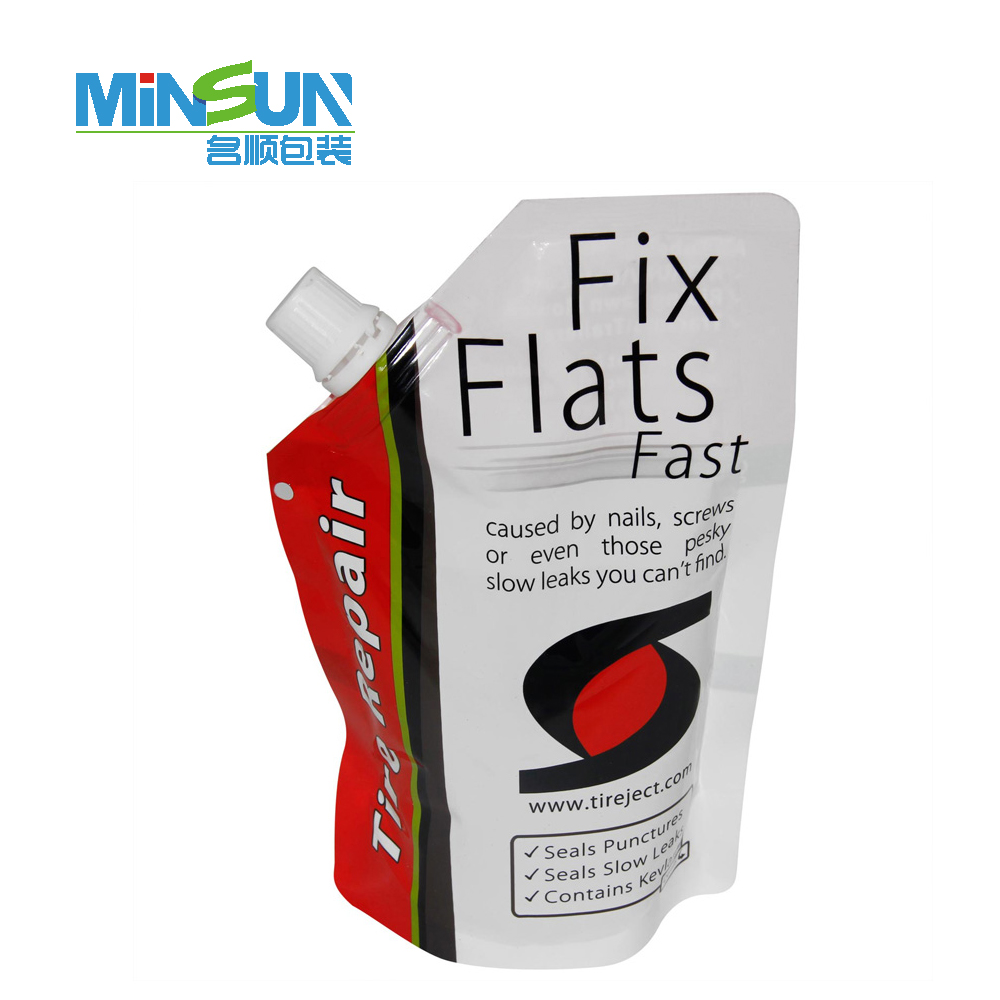

Spouted Stand-Up Pouch
A simple, space-saving option for single-servings, flat products, or small quantities (e.g., tea bags, single-use snacks).
Key Dimensions: Width (W) × Height (H) (from bottom to top seal)
Volume Note: Since flat pouches have minimal depth, volume is approximate. Use the formula for surface area (W×H) and multiply by 0.3-0.5 (depending on product thickness) for a rough estimate.

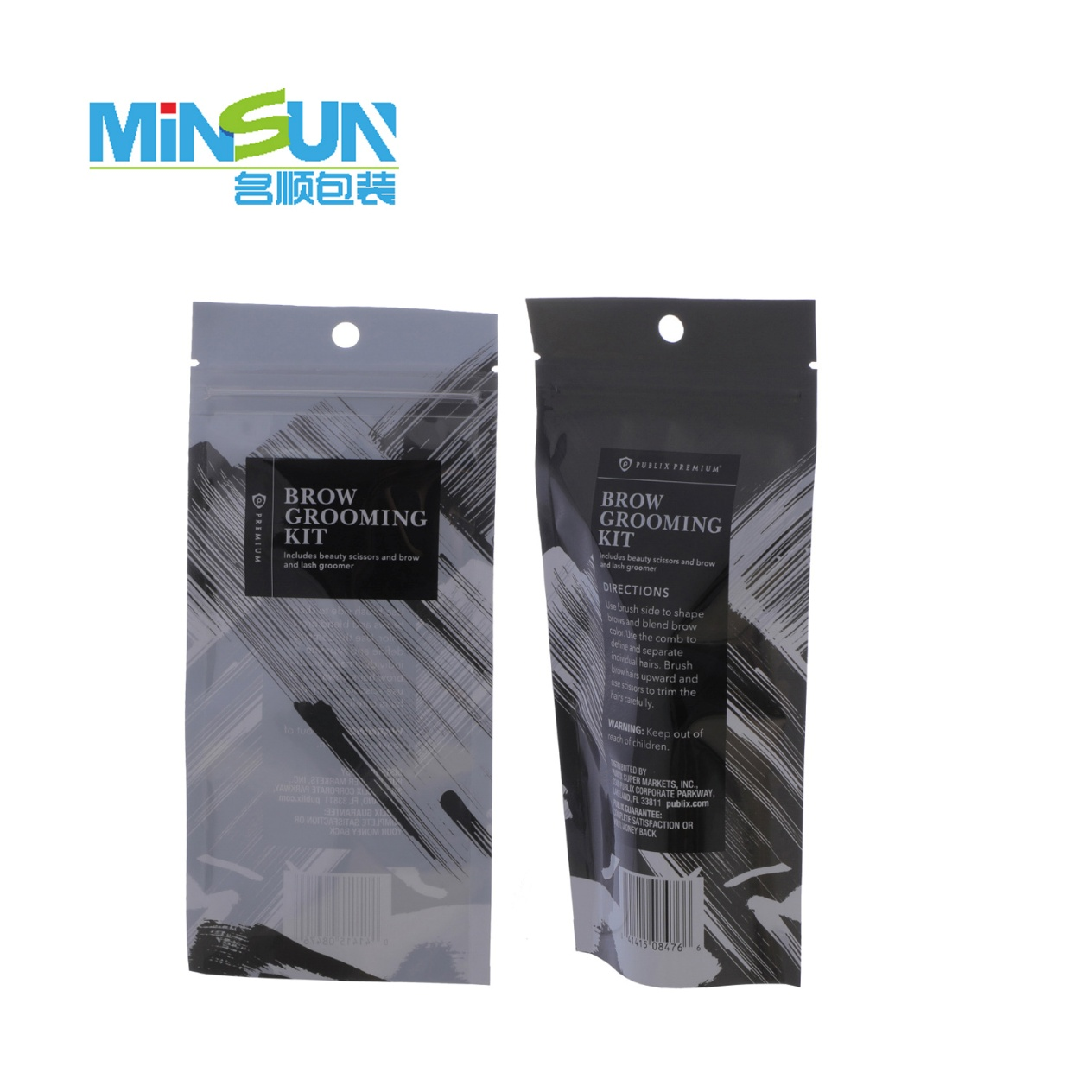

Flat Pouch (Three-Side Sealed)
At Min Sun, we don’t just teach volume calculation—we deliver end-to-end solutions to ensure your custom pouches fit perfectly. Our approach combines scientific methods with hands-on verification to eliminate guesswork:
We use advanced equipment to capture exact dimensions, avoiding human error:
Digital Calipers: Measure width, height, and gusset depth to the nearest 0.1mm, ensuring consistency across batches.
Electronic Tensile Machines: Verify material flexibility to account for compression—critical for soft or malleable products that might settle during shipping.
For custom orders, we go beyond formulas to test with your actual product:
1) Create a prototype pouch based on initial volume calculations.
2) Fill the prototype with your product (e.g., snacks, powders, liquids) to your desired fill level.
3) Transfer the product to a volumetric measuring container (beaker or graduated cylinder) to confirm exact capacity.
4) Adjust pouch dimensions as needed to achieve the perfect fit—eliminating overfilling/underfilling risks.

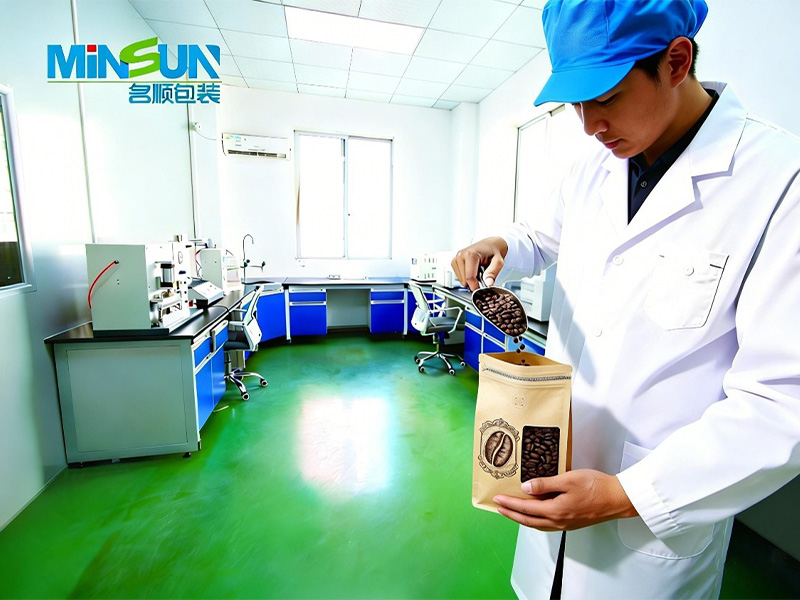

Empirical Fill Testing
Our team accounts for material properties that impact volume:
Flexible films (e.g., LLDPE, BOPP) may compress slightly—we add 3-5% buffer to ensure long-term fit.
Multi-layer structures (e.g., PET/AL/LLDPE for barrier protection) are factored into internal volume calculations, avoiding unexpected space loss.
Avoid Brand Damage: Overfilled pouches look unprofessional and may burst during shipping; underfilled bags disappoint customers and harm perceived value.
Reduce Waste: Right-sized pouches minimize packaging material usage, lowering production costs and supporting sustainability goals (e.g., our biodegradable kraft paper pouches and recyclable film options).
Optimize Logistics: Perfectly sized pouches stack more efficiently, reducing shipping costs and storage space requirements.
Compliance: Ensure your packaging meets regulatory requirements for product labeling (e.g., accurate volume/weight claims) in markets like the US, EU, and Japan.
Tired of guessing pouch sizes and dealing with ill-fitting packaging? Min Sun’s 15+ years of experience in custom flexible packaging means we’re experts at translating your product’s unique needs into the perfect pouch.

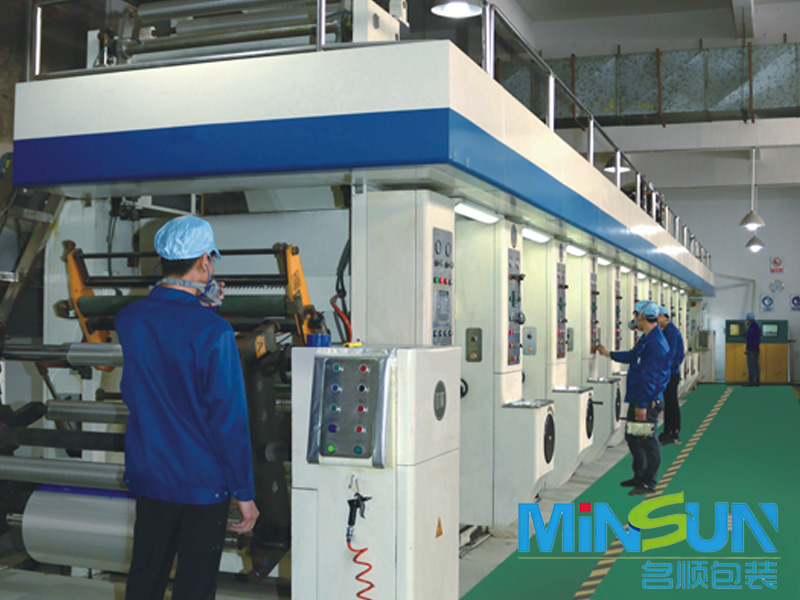

Our work shop
Whether you’re packaging snacks, pet food, liquids, or specialty products—we offer:
Custom Sizing: Tailor pouch dimensions (width, height, gusset depth) to your product’s exact volume.
Diverse Materials: From food-grade laminates to biodegradable kraft paper (used successfully for a US diaper brand, achieving 92% degradation rate while maintaining moisture resistance), we have eco-friendly and functional options. End-to-End Support: From volume calculation and prototype testing to mass production and delivery, our team guides you every step of the way.

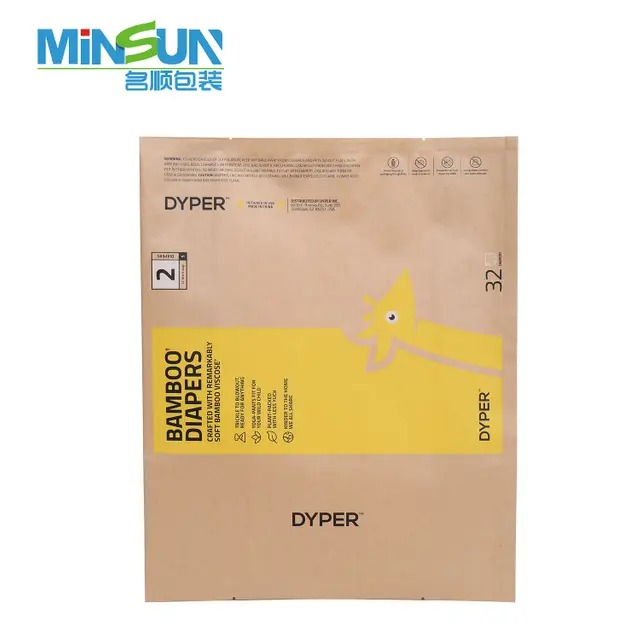

Kraft Paper Pouch
1) Share your product details: Type (solid/liquid/powder), target weight/volume, and any special requirements (e.g., resealable zipper, spout, eco-friendly material).
2) We’ll calculate the ideal pouch volume, create a custom prototype, and conduct fill testing with your product.
3) Receive a precise, cost-effective custom pouch solution that enhances your product’s appeal and reduces waste.
4) Contact us now to get started:
Email: Business@minsunchina.com
Tel: +86-0769-8230-2668
Website: www.minsunchina.com
Don’t let poor sizing hurt your brand—trust Min Sun to deliver custom packaging that fits perfectly, looks professional, and drives sales.
Q: How do I know which pouch type is right for my product?
A: Consider your product’s volume (e.g., high-volume = flat bottom pouch), form (liquid = spouted pouch), and usage (single-serve = flat pouch). Our team can recommend the best type based on your needs.
Q: Why is empirical fill testing important?
A: Product density (e.g., fluffy granola vs. dense powder) affects how much fits in a pouch. Testing with your actual product ensures accuracy that formulas alone can’t match.
Q: Can Min Sun create custom pouch shapes beyond the types listed?
A: Yes! We specialize in custom shaped pouches and can calculate volume for unique designs using 3D scanning and fill testing.
Q: Do you offer eco-friendly options for all pouch types?
A: Absolutely—we provide biodegradable kraft paper, compostable PLA films, and recyclable laminates that meet global sustainability standards (e.g., ASTM D6400 for the US).
For food brands, packaging buyers, and private label teams, a stand-up pouch is not only a printed container. It is a performance tool that affects filling speed, shelf display, shipping safety, consumer handling, and product protection. A design that looks attractive in a mockup may still fail if the film structure, pouch size, seal layout, and packing process are not reviewed together.
The keyword focus of this article is stand-up pouch volume, but the real buying decision is wider than one phrase. Buyers should connect the product use case with packaging structure. For dry food, snacks, coffee, pet treats, powder, and refill products, the pouch must match product weight, product texture, storage condition, and the way the pack will be opened and resealed.
A reliable packaging project starts with a clear product brief. The brief should include filling weight, target dimensions, material preference, shelf-life expectation, printing method, outer carton plan, retail channel, and transport route. This prevents confusion between design teams, purchasing teams, and the packaging manufacturer.
Before confirming a packaging order, buyers should review key specifications in writing. This is especially important for custom packaging because small differences in film thickness, zipper position, spout size, gusset depth, or sealing width can affect production results.
| Specification | Check Point |
|---|---|
| Bag Size | Match fill volume |
| Film Structure | Match product need |
| Seal Width | Support strength |
| Print Area | Keep key text clear |
| Closure Option | Match user habit |
| Carton Packing | Protect during transit |
These details should be confirmed before mass production. If the product is new, a sample test or pilot run is strongly recommended. A sample does not only show color and shape. It helps the buyer test how the pouch behaves when filled, handled, packed, and displayed.
Material selection is one of the most important parts of flexible packaging. A pouch can be made with different film layers depending on the product. Some products need moisture protection. Others need aroma retention, oxygen control, puncture resistance, grease resistance, or a smooth printing surface.
Buyers should not choose material only by appearance. A glossy finish, matte finish, kraft-paper look, or transparent window can help marketing, but the inside film structure must still protect the product. For food packaging, the material should support freshness, sealing, and safe handling. For hygiene packaging, moisture control and easy opening may be more important.
Sustainable packaging goals should also be discussed early. Some brands want recyclable structures, paper-based appearances, reduced plastic use, or mono-material solutions. These goals may affect barrier level and sealing performance, so they must be matched with real product requirements.
A good test plan helps prevent expensive packaging problems. It is better to find a weakness during sample testing than after thousands of printed bags have been produced. Testing should focus on the real way the pouch will be used.
| Test | Timing |
|---|---|
| Water Fill Test | Before bulk order |
| Real Product Fill Test | Before bulk order |
| Drop Test | Before bulk order |
| Seal-Area Clearance Check | Before bulk order |
| Carton Packing Review | Before shipment |
| Retail Shelf Trial | Before launch |
The testing process should involve both the brand owner and the packaging supplier. When both sides review the same samples, it becomes easier to identify whether the issue is related to bag structure, filling equipment, product behavior, or transportation method.
Many packaging problems are caused by decisions made too late. For example, a buyer may approve artwork before confirming the zipper position, or choose a film before confirming shelf-life requirements. This can cause rework and delay the project.
| Risk | Action |
|---|---|
| Wrong Fill Volume | Review early |
| Poor Shelf Stability | Review early |
| Inaccurate Gusset Size | Review early |
| Overfilled Sealing Area | Review early |
| Late Artwork Change | Lock design |
| Missing Sample Test | Run trial |
Another common issue is focusing only on the lowest unit cost. A lower-cost pouch may create higher losses if it causes leakage, poor display, printing defects, weak seals, or slow filling. Buyers should compare packaging value by total performance, not by a single number.
Flexible packaging must protect the product, but it also needs to communicate clearly on the shelf. The front panel should show the brand name, product type, flavor or variant, net weight, and key selling point without visual clutter. The back panel can carry instructions, ingredients, barcode, certification marks, and production information.
For international buyers, language planning and regulatory text should be checked before printing. If the same pouch is used in several markets, the layout must leave enough space for multilingual information. High-quality printing can improve brand image, but accurate content is just as important.
Color proofing is also important. Digital artwork on a screen may not look the same after printing on film. Brands should review physical proofs or printed samples whenever possible. This helps avoid surprises in color, contrast, barcode readability, and logo sharpness.
Packaging should be designed around the filling line. A pouch that works well by hand may not work smoothly on automatic or semi-automatic equipment. Buyers should confirm filling opening, pouch stiffness, seal area, zipper position, spout position, and product drop behavior before final approval.
Sealing is especially important. If product dust, liquid, oil, or powder enters the seal area, leakage may occur. The pouch design should make it easier for operators or machines to keep the sealing zone clean. For some products, a wider seal area or different film layer may improve reliability.
After filling and sealing, the pouch must also survive carton packing and shipping. Upright display, flat packing, bulk stacking, and export transport may require different carton layouts. Good secondary packaging helps protect the pouch shape and printed surface during delivery.
Confirm product type, filling weight, and target shelf life.
Choose pouch structure according to storage and display needs.
Review film structure, sealing layer, and closure option.
Prepare artwork with correct dimensions and safe print margins.
Request physical samples before mass production.
Test filling, sealing, carton packing, and shelf presentation.
Confirm shipping marks, carton quantity, and pallet requirements.
Keep approved samples for future reorder comparison.
A: Buyers should confirm product weight, bag size, film structure, printing method, closure option, carton packing, and sample approval requirements before mass production.
A: Sample testing helps identify filling, sealing, display, and transportation issues before bulk production begins.
A: Sometimes it can, but each product should still be checked for weight, moisture level, shape, storage needs, and filling behavior.
A: Brands can improve shelf appeal with clear front-panel hierarchy, strong color control, readable text, and a pouch structure that stands or displays well.
A: Leakage may come from weak sealing, product contamination in the seal area, unsuitable material, poor closure design, or transport damage.
A: Buyers should keep approved samples, artwork files, material specifications, and carton details so future orders remain consistent.
The best pouch size is not the largest one on the sheet; it is the size that fits the real product, seals cleanly, displays well, and keeps logistics efficient.
For brands working with custom flexible packaging, the most successful projects are built on early technical communication. When the buyer and supplier review size, material, printing, filling, and shipping together, the final pouch is more likely to perform well in production and in the market.
Deep packaging planning should connect the pouch specification with the full commercial journey of the product. A package may pass a simple visual check, but it still needs to perform through filling, sealing, storage, carton packing, palletizing, shipping, retail display, and end-user handling. For dry food, snacks, coffee, pet treats, powder, and refill products, every step can place different pressure on the pouch.
Buyers should begin by mapping the life cycle of the package. The first stage is production, where the pouch must be easy to open, fill, seal, and inspect. The second stage is logistics, where the pack must resist pressure, vibration, rubbing, and carton compression. The third stage is retail or e-commerce display, where the pack needs clear branding and stable appearance. The final stage is consumer use, where opening, pouring, resealing, and storage all affect satisfaction.
When these stages are reviewed together, the packaging decision becomes much clearer. A pouch that is excellent for shelf display may need extra strength for export shipping. A pouch designed for strong protection may need a better print layout to communicate product value. A pouch designed for easy filling may need a different closure to improve customer use. This is why professional packaging development should never rely on one factor alone.
Before approving a final pouch design, procurement teams should prepare a short but precise question list. This helps suppliers give clearer answers and helps buyers compare options more fairly.
What product weight or fill volume will each pouch carry?
Will the product be filled hot, cold, dry, wet, or dusty?
Does the product need moisture, oxygen, aroma, grease, or light protection?
Will the pouch be displayed upright, flat, hung, or packed in cartons?
Does the consumer need a zipper, tear notch, spout, handle, window, or easy-open feature?
Will the package be sold in supermarkets, online channels, foodservice, wholesale, or export markets?
Does the artwork need multiple languages, certification marks, QR codes, or regulatory text?
Has the sample been tested with the real product and the real filling method?
These questions reduce uncertainty. They also help avoid a common problem: approving a pouch based on appearance while leaving technical performance unresolved.
Sample review should be more than a quick look at print color. Buyers should handle the sample like a finished product. Fill it with the real product or the closest possible substitute. Check how the pouch stands, whether the seal area remains clean, whether the closure works smoothly, and whether the shape stays acceptable after handling.
If the pouch will be used for food, the buyer should also consider storage condition and shelf-life expectations. If the pouch will be used for wipes or liquid products, leak resistance and moisture retention are important. If the pouch will be used for bulk rice, grain, or pet food, load strength and stacking behavior should be reviewed. Each product category needs a slightly different sample test.
It is also helpful to compare the approved sample with future production. Keeping a signed reference sample allows the buyer and supplier to check color, material feel, size, seal quality, and workmanship during reorder production.
| Review Area | Buyer Focus |
|---|---|
| Appearance | Brand match |
| Structure | Stable shape |
| Sealing | Clean closure |
| Handling | Easy use |
| Logistics | Transit safety |
| Reorder | Batch consistency |
A high-quality stand-up pouch should solve a real packaging problem rather than only looking attractive in a product photo. The strongest projects combine technical structure, clear branding, practical filling performance, and reliable supply planning. When these elements are aligned, the package can protect the product, support the brand, and make purchasing decisions easier for downstream customers.
